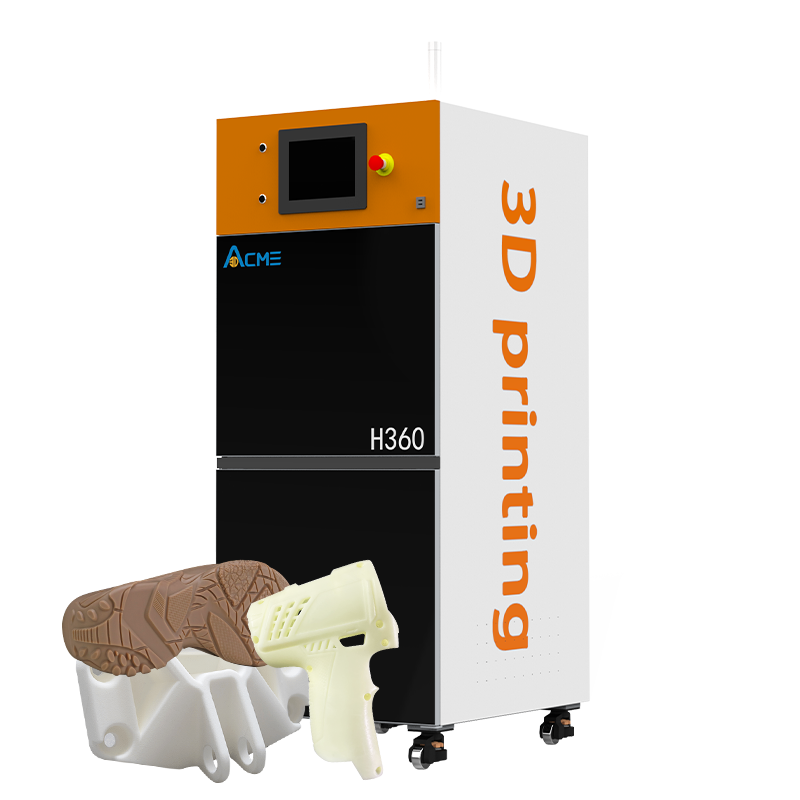

Industrial SLA 3D Printer

Variable light spot technology

Model HI360

Professional, Stable and High-precision

Industrial SLA 3D printer

Variable light spot technology, vacuum absorption system, liquid level detection technology, thickened integrated body, precision ball screw, higher and more stable positioning accuracy during printing.

Maximum Forming Size

360X360X300mm

Consulting Quotation Product Video Leanr More
Fine fast simple stable and large size

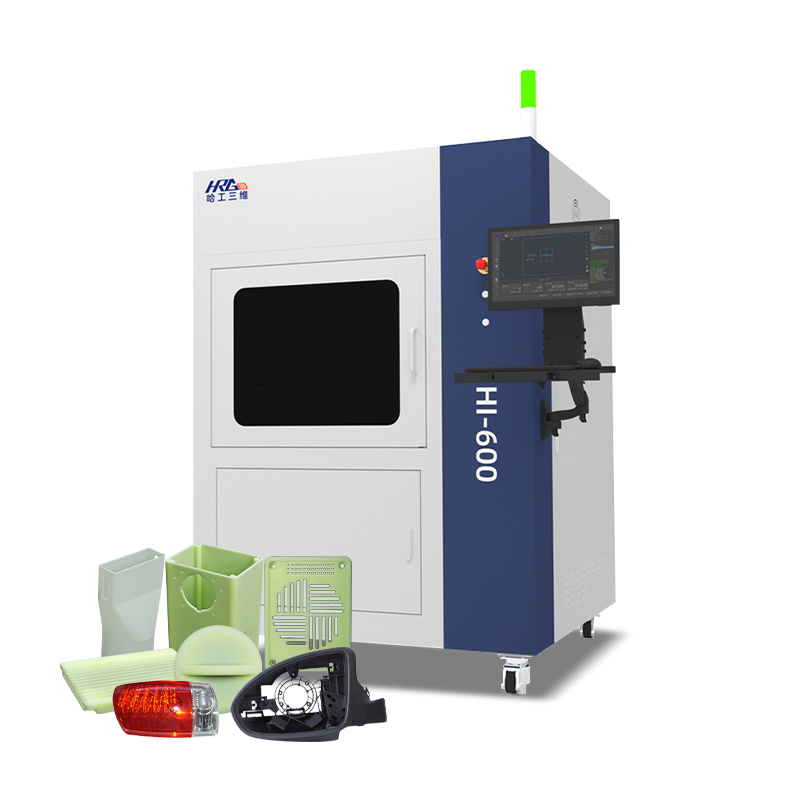

Model HI600

Shorten printing time and improve work efficiency

Industrial SLA 3D printer

Suitable for mass product prototype design and component production.

Maximum Forming Size

600*600*400mm

Consulting Quotation Product Video Leanr More
Fine fast simple stable and large size

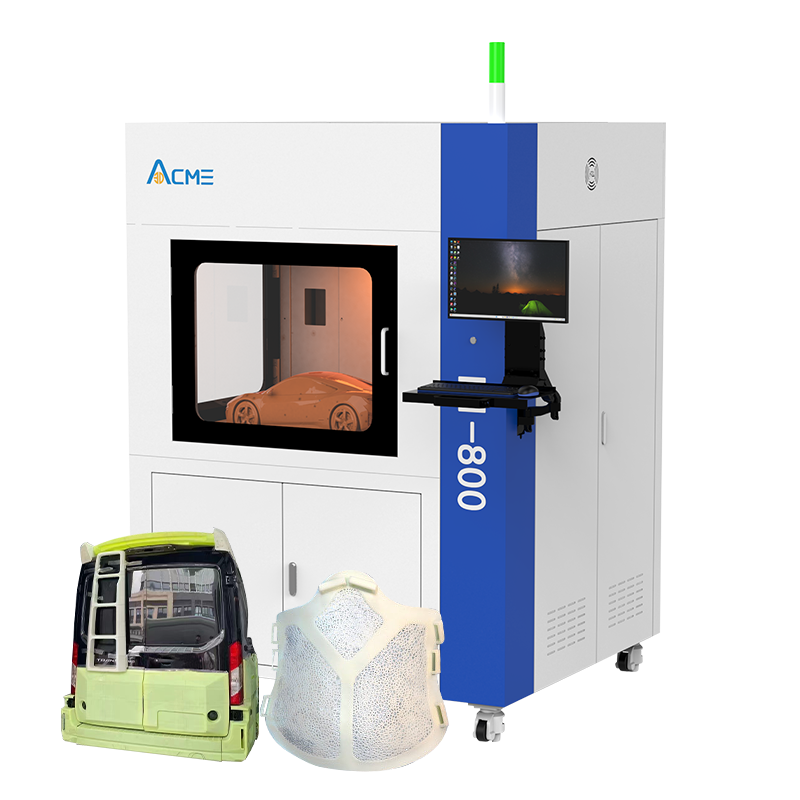

HI800

High degree of automation in forming process

Large Industrial SLA 3D Printer

A specialized 3D printer for industrial manufacturing, suitable for the research and development, design and verification of large components or products, and for the mass production of small components.

Maximum Forming Size

800*800*600mm

Consulting Quotation Product Video Leanr More

| Main Feature |

Core selling points

Matrix parallel
light source
Industrial
HD touch screen
Large format
High precision molding
Precision Z axis
Control system
Simple and efficient
section software
Custom
material settings

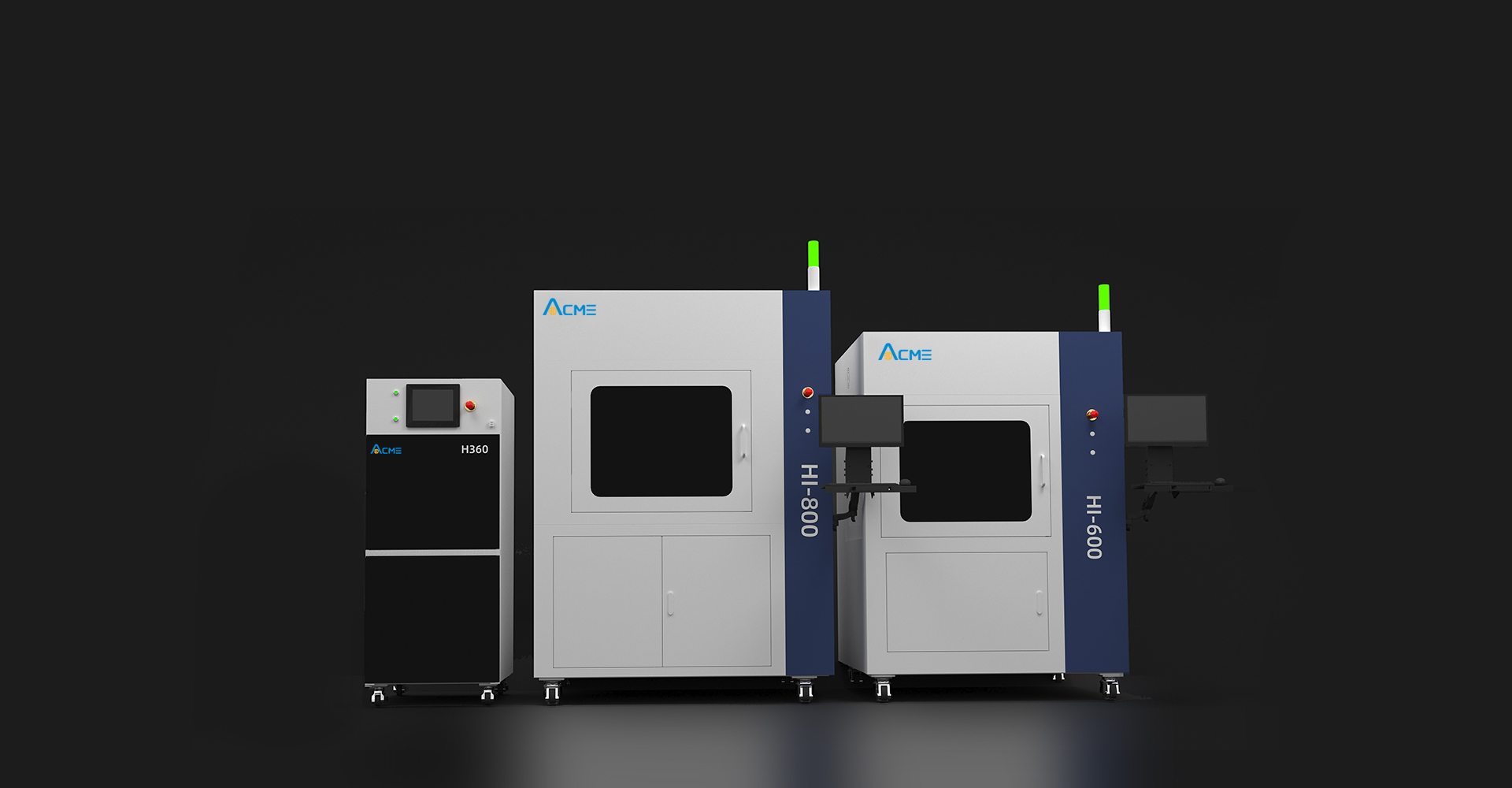

| Print Size |

Large Size

H360

355 nanocrystalline laser
Small body, large size
Can enter the building for operation
HI600

▪ Large size, high precision
▪ Meet the needs of large parts or mass production
▪ High degree of molding automation
HI800

▪ Large size, high precision
▪ Meet the needs of large parts or mass production
▪ High degree of molding automation

| Industrial Part |

Accurate and Stable

355 nanocrystalline laser
High-speed scanning galvanometer
Motion drive system

ACME3D focuses on the R&D, manufacturing, sales and 3D printing industry application solutions of LCD/DLP/SLA 3D printing equipment. Focus on the construction of modern, intelligent and digital industrial manufacturing scenes for 3D printing. Focus on the R&D of technical equipment and technological process in the field of 3D printing.

| Compatible With Multiple Materials |

Suitable for various materials

Rigid/high temperature resistant/flexible/high permeability/ABS/tires/shoes and other performance photosensitive resins

Casting material
Transparent material
High toughness
ABS Resin
Flexible resin
High temperature resistant resin
High toughness resin

| Technical Parameter |

Product Parameters

Specifications
	Model	H360	Hl-600	Hl-800
	Appearance dimension	7008601720mm	153013001965mm	1570X1450X2190mm
	Weight	330KG	1100KG	1460KG
	Power	350W	350W	350W

Laser system
	Number of lasers	1
	Laser type	Diode-pumped solid-state laser ND: YVO4
	Laser wavelength	355nm
	Laser power	3W

Optical scanning system
	Spot diameter	0.12-0.6mm
	Scanning form	High-speed galvanometer scanning system
	Part scanning speed	Recommended 6m/s
	Part jump speed	Recommended 10m/s
	Reference production speed	100-300g/h

Coating system
	Application method	Precise positioning - vacuum adsorption
	Normal layer thickness	0.1mm
	Layer thickness of rapid parts	0.15mm
	Precise manufacturing layer thickness	0.05mm
	Characteristic manufacturing layer thickness	0.05mm-0.15mm

Resin tank
	Resin tank volume	75kg	230kg	500kg
	Maximum forming size	360360300mm	600600400mm	800800500mm

Lifting system
	Basic platform	Casting reference table
	Repetitive positioning accuracy	±0.01mm
	Maximum fabricated part weight	10kg	30kg	100kg
